Portkeys HS8 8 inch 1100nit Camera Field Monitor 3D LUT 3G-SDI 4K HDMI and V Power Supply System Aluminium Alloy Frame with Dual NP-F Battery Plates 1920x1200 Touch Screen Monitor

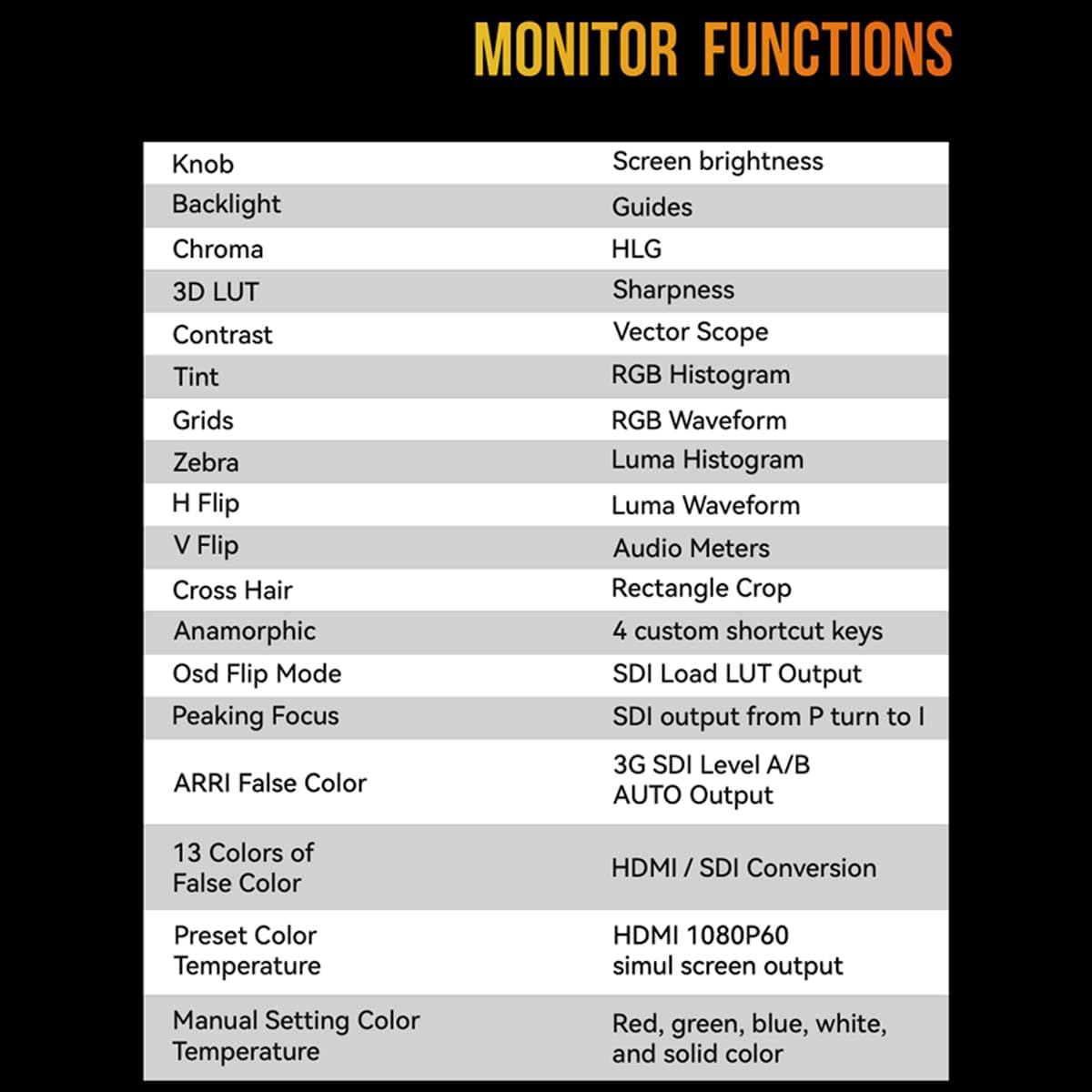

The Portkeys HS8 also allows you to make crucial decisions on set and have confidence in your image with a full suite of monitoring tools, including: 3D LUT monitoring with 3D LUT SDI output capabilities. Custom LUTs can be loaded via the USB-A port at the bottom of the monitor. RGB and Luma Waveform/Histogram exposure tools. There is also an adjustable Zebra tool. Customizable False Color with 13 different colors, including ARRI False Color. Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x. Peaking and Zoom functions to nail focus easily. 3G SDI Level A/B auto output and SDI transform from Progressive to Interlaced capabilities. Framing tools: crosshair, check field, guides, grids, rectangle crop. Audio meters. Monitor adjustments: black level, backlight, contrast, color temperature, sharpness, chroma, brightness, tint, HDR HLG, OSD Flip mode. The Portkeys HS8 ships with a D-Tap to locking 5.5mm power cable, a screen cleaning wipe, a USB key, a set of M3 Allen screws, an Allen key, and replacement cup head gaskets for the protection screen.

• 8 Inches 1100 Nits Brightness Touch Screen Monitor with Metal Frame+Tempered Glass with 1920x1080 resolution
• Rich Power Supply System： DC 7-20V 5.5mm barrel connector power input for external power (D-Tap cable included).VESA 100 x 100 mounting points for V-Mount/Gold-Mount batteries.NP-F dummy battery plate with power passthrough (8V/10W) to attach and power a wireless transmitter at the back of the HS8.

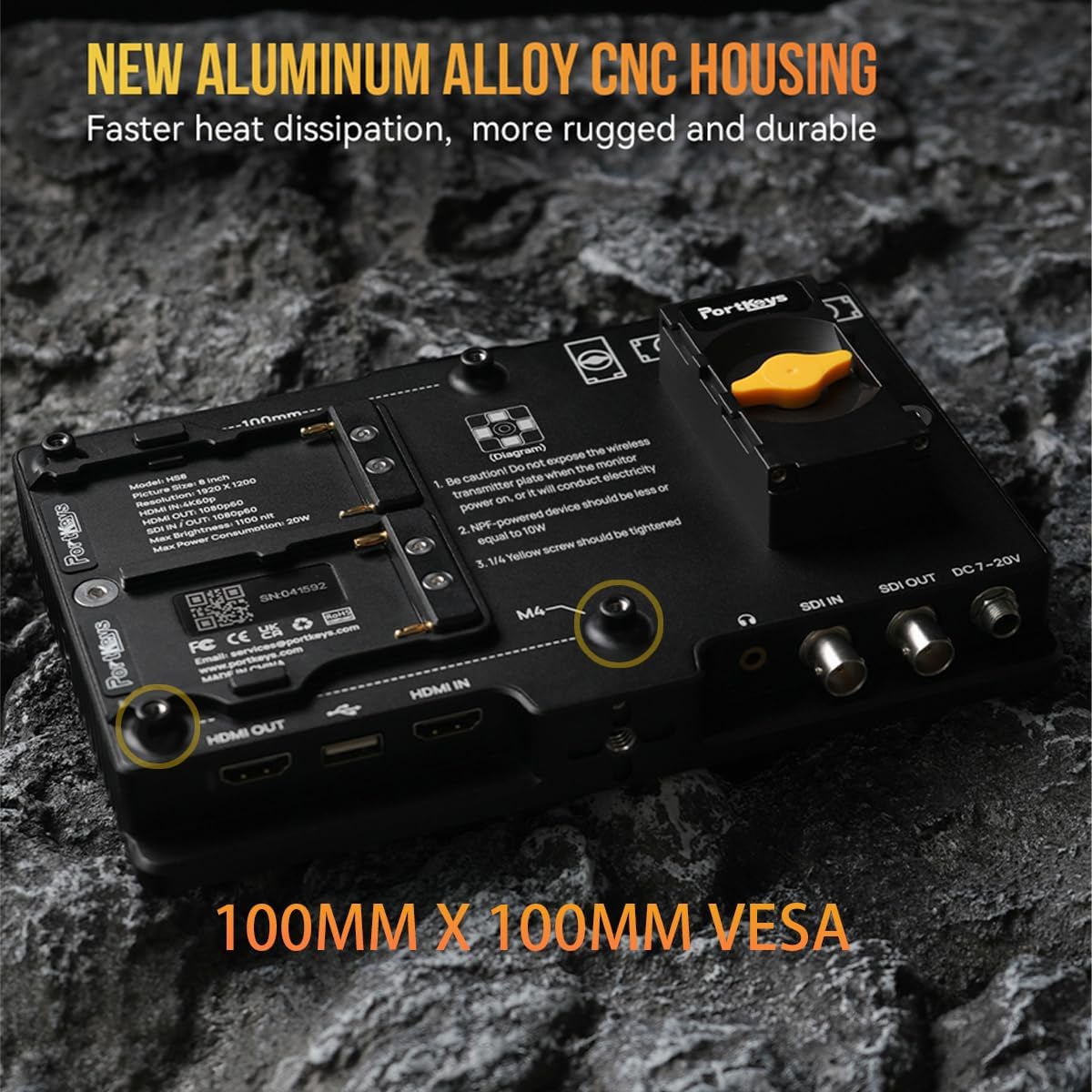

• Rugged All-Aluminum Housing：New aluminum alloy cnc housing:faster heat dissipation,more rugged and durable only 675g/1.48 lbs.
• 3D LUT monitoring with 3D LUT SDI output capabilities. Custom LUTs can be loaded via the USB-A port at the bottom of the monitor.
• Rec.709 professional color calibration, precise & accurate monitoring with no color banding.Customizable False Color with 13 different colors, including ARRI False Color.
