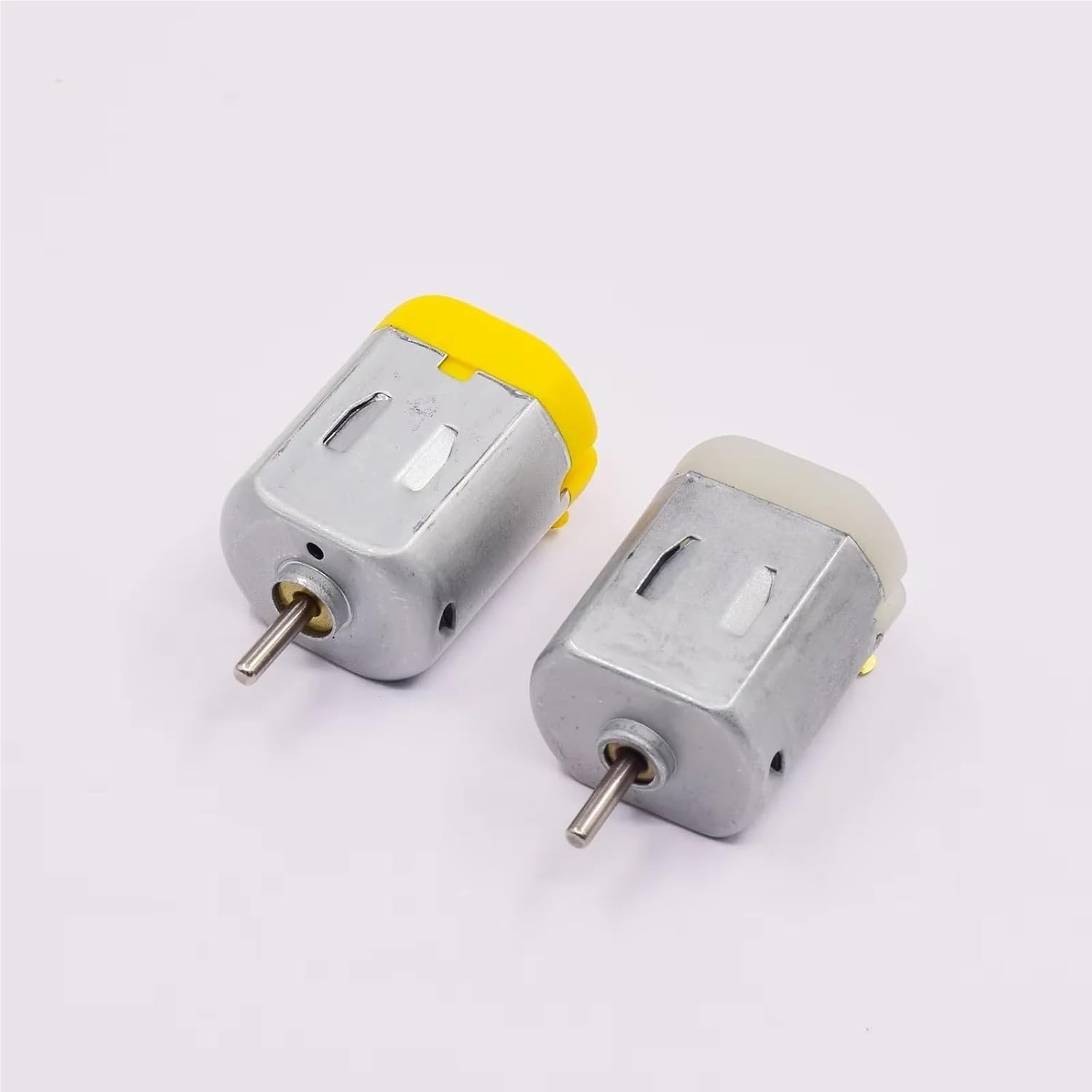

FP130 FK130 Carbon Brush Motor Magnetic DC 6V-12V High Speed Large Torque DIY 4WD Car 1Pcs(FK-130AV-15155)

MotorsFP130 FK130 Carbon Brush Motor Magnetic DC 6V-12V High Speed Large Torque DIY 4WD Car 1PcsThese motor is carbon brush, magnetic, large torque, suitable for 4wd toy car.Model Option: FK-130SA-14183 / FP130-CN-11305 /FK-130AV-15155 / FP130-CN-18100/FN130-AA-14200Motor size: 15mmm*20mmMotor height: 25mmOutput shaft diameter: 2.0mmmOutput shaft length: 8mmm (from the panel 9.5mm )Weight: 18gTest data: FK-130SA-14183 (white back cover)Voltage:6V No-load speed: 10600RPM Current:80mAVoltage:7.4V No-load speed: 13200RPM Current:90mAVoltage:9.0V No-load speed: 15000RPM Current:98mAVoltage:12V No-load speed: 20200RPM Current:110mATest data: FP130-CN-11305 Voltage:9.0V No-load speed: 9900RPM Current:50mAVoltage:12V No-load speed: 13500RPM Current:80mAVoltage:15V No-load speed: 16500RPM Current:120mATest data: FK-130AV-15155(white back cover)Voltage:3.0V No-load speed: 7200RPM Current:90mAVoltage:3.7V No-load speed: 9600RPM Current:116mAVoltage:6.0V No-load speed: 15400RPM Current:128mAVoltage:9.0V No-load speed: 22600RPM Current:160mAVoltage:12V No-load speed: 30000RPM Current:186mATest data: FP130-CN-18100Voltage:1.5V No-load speed: 4500RPM Current:160mAVoltage:3.0V No-load speed: 9000RPM Current:180mAVoltage:4.5V No-load speed: 15000RPM Current:220mAVoltage:6.0V No-load speed: 19500RPM Current:255mATest data: FN130-AA-14200 Voltage:6V No-load speed: 13000RPM Current:68mAVoltage:9.0V No-load speed: 19300RPM Current:90mAVoltage:12V No-load speed: 25800RPM Current:120mANotes: The shaft length of FS-130CN-22100 motor is longerTest data: FS-130CN-22100(Yellow back cover)Voltage:3.0V No-load speed: 9300RPM Current:170mAVoltage:3.7V No-load speed: 11500RPM Current:185mAVoltage:5.0V No-load speed: 15500RPM Current:200mATest data: FS-130CN-22100(White back cover)Voltage:3.0V No-load speed: 9700RPM Current:160mAVoltage:3.7V No-load speed: 12000RPM Current:175mAVoltage:5.0V No-load speed: 16500RPM Current:185mAPackage include:1PCS x MotorConstruction : Permanent MagnetType : Mini MotorProtec Feature : Explosion-proofCommutation : BrushEfficiency : IE 1Model : mini 130
